Rubber Tile Vulcanizing Press Machine

Rubber tile vulcanizing press machine is used to convert rubber granules (from waste tires) into rubber tiles or rubber bricks. It can heat the mixed recycled rubber granules, glue and pigment; and make all kinds of rubber tiles / bricks by changing the moulds accordingly.

This kind of products are used in stadiums, children yard, sports playground, gym, senior center, swimming pool beach, kindergartens, nurseries, parks, stations, shopping malls, office, hotel and so on.

Rubber tiles is with elasticity, high strength, stand wear and tear, anti-slip, shock proof, insulation, anti-static.
Ground covered with rubber tiles can protect people from falling down.

Quantity:
  • TPS-LH400X400X2, TPS-LH500x500x2(600X600X2), TPS-LH750X850X2(4)
  • Shilong

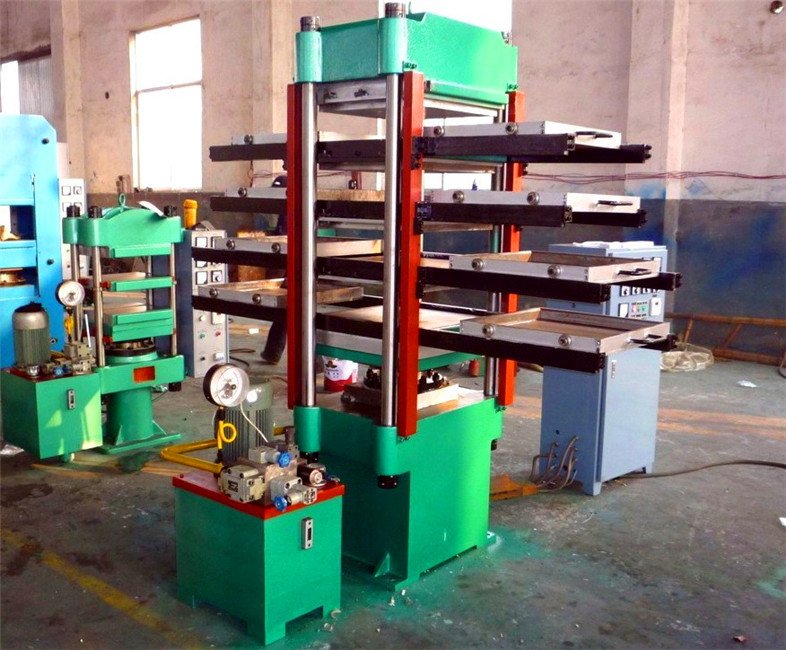

Rubber Tile Press Machine Commissioning

Rubber Tile Machine.jpg

Rubber Tile Vulcanizing Press Machine in Production

Rubber Tile Vulcanizing Press Machine.jpg


1. Applications:



Rubber tile vulcanizing press machine is used to convert rubber granules (from waste tires) into rubber tiles or rubber bricks. It can heat the mixed recycled rubber granules, glue and pigment; and make all kinds of rubber tiles / bricks by changing the moulds accordingly.



This kind of products are used in stadiums, children yard, sports playground, gym, senior center, swimming pool beach, kindergartens, nurseries, parks, stations, shopping malls, office, hotel and so on.



Rubber tiles is with elasticity, high strength, stand wear and tear,  anti-slip, shock proof, insulation, anti-static.

Ground covered with rubber tiles can protect people from falling down.

Rubber Brick, rubber tiles

Rubber Tiles.jpg



2. Production process:



2.1 Raw material:  A. rubber granules    B.Polyurethane glue   C. Color pigment



2.2 Production:  Put rubber granules into mixer. Add glue and color pigment. Mixer will mix them completely. Then put granules after mixing into molds and spread out. Push molds into vulcanizing press. After 10-12 minutes, it can be finished and take out the tiles.

Rubber Tile Pressing Machine



2.3 Capacity: Common rubber tile size is 500*500mm. There are also bigger size which is 1000*1000mm.

Thickness of the tiles can be from 15mm to 50mm. Thickness used often is 15mm, 20mm, 25mm and 30mm.

Different thickness, vulcanizing time is a little different.



2.4 Parameters:

We also have 80 Ton,100 Ton,160Ton  tile making machine,

You can chose the size of the machine as your need.










Rubber Bricks Press Machine


Model

TPS-LH400X400X2

TPS-LH500x500x2(600X600X2)

TPS-LH750X850X2(4)

2. total   pressure(tons)

50

100

160

3. plate   size(mm)

400x400

500x500(600x600)

750x850

4.   daylight clearance(mm)

25

125

125

5.   daylight number

2

2

2(4)

6.   piston stroke(mm)

250

250

250(500)

7. unit   area pressure(kg/sqcm)

31

40(28)

25

8. main   motor power(kw)

2.2

2.2

3

9.   overall size(mm)

1400x550x1500

1400x680x1750

1900x950x2028

10. weight(kg)

1300

2400

6500(7500)

Rubber Tile Vulcanizing Press Machine
