Rubber Refiner Mill

Tops Industry offers Rubber Refiner Mill for Reclaim projects. We offer Refiner mills for rubber from 12"x16"x24" to 21"x24"x36". Refiner mill is the most important machine required in a reclaim rubber project. Tops Industry makes refiners are highly efficient as well durable. The success of a good reclaim project mainly lies in the hand of a Rubber Refiner mill. Tops industry make reclaim rubber machinery are of world top class quality that can give the best quality result

Quantity:
  • X(S)K-160, X(S)K-200, X(S)K-250, X(S)K-360, X(S)K-400, X(S)K-450, X(S)K-560, X(S)K-610
  • TOPS RECYCLING

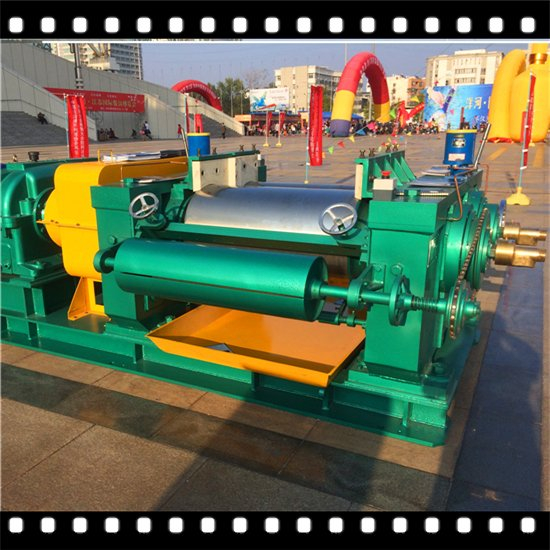

Rubber Refiner Mill Machine


Tops Industry offers Rubber Refiner Mill for Reclaim projects. We offer Refiner mills for rubber from 12"x16"x24" to 21"x24"x36". Refiner mill is the most important machine required in a reclaim rubber project. Tops Industry makes refiners are highly efficient as well durable. The success of a good reclaim project mainly lies in the hand of a Rubber Refiner mill. Tops industry make reclaim rubber machinery are of world top class quality that can give the best quality result.

Features of TOPS INDUSTRY make Rubber Refiner mill are



·       Rolls: Alloy Chilled Cast Iron rolls with Surface hardness 510 ~ 550 BHN. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling.

·       Stand Frame & Apron (Cap): Heavy Duty Steel Casting / Steel Fabricated.

·       Journal Bearing Housing: Steel Casting Housing fitted with Anti Friction Roller Bearings.

·       Lubrication: Manual / Motorized Grease pump for lubrication of Anti Friction Roller Bearings fitted in dust sealed housing.

·       Base frame: Common base frame, heavy duty Steel fabricated of Double Channel and MS plate accurately machined for fitment of auxiliary equipment.

·       Gearbox: Helical reduction gearbox, Greaves Make.

·       Electric Control Panel: Star Delta Electric operating panel with Voltmeter, Ammeter Overload protection relay and Emergency switch 3 phase indicator arrangement.


Machine Model

Roll diameter

×Length(mm)

Linear speed of front

(m/min)

Roll friction ratio

Batch volume

(kg)

Motor power

(KW)

Max. nip adjusting

(mm)

Overall dimension

(mm)

Weight

(t)

X(S)K-160

160×320

8.95

1:1.35

1-2

5.5

4.5

1120×920×1295

1.1

X(S)K-200

200×500

19.50

1:1.05

8

11

5

2055×900×1165

2.5

X(S)K-250

250×620

15.20

1:1.10

10-15

18.5

8

3220×1500×1290

3.8

X(S)K-360

360×900

16.26

1:1.25

15-20

30

10

3920×1650×1725

5.53

X(S)K-400

400×1000

18.65

1:1.27

25-35

40

10

4380×1710×1880

8.14

X(S)K-450

450×1200

23.85

1:1.27

30-50

55

8

5050×1920×1870

13

X(S)K-560

560×1530

27.61

1:1.315

50-60

95

12

5830×2300×2000

22

X(S)K-550

550×1500

27.175

1:1.25

50-65

90(110)

15

6040×2100×1625

20

X(S)K-610

610×1830

28.7

1:1.25

90-120

160

15

6750×3040×1743

35

XKY-660

660×2130

32.45

1:1.09

165

185

15

7450×3660×2080

45

XKR-660

660×2130

28.60

1:1.24

165kg

250

15

7465×3660×2080

45.6

X(S)K-710

710×2200

31.90

1:1.09

350kg

280

15

7180×3805×3015

50

X(S)K-760

760×2540

33.23

1:1.09

350kg

315

15

7180×3805×3015

58

X(S)K-810

810×2540

31.90

1:1.09

350kg

355

15
