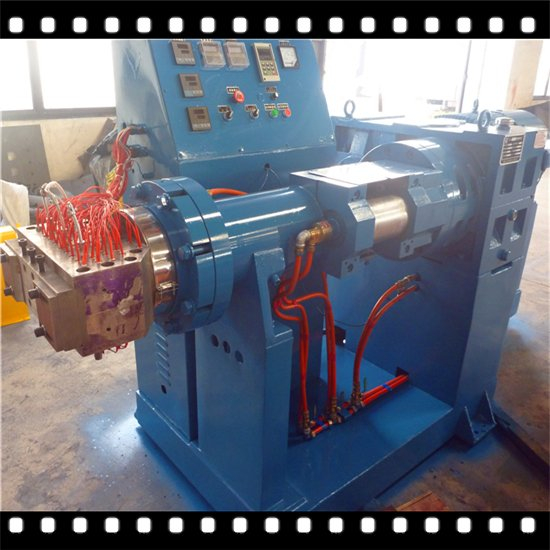

Rubber Extruder

With our cold-feed extruders of small to medium frame size, we offer you compact and reliable machines. Special screw and barrel designs and configurations will guarantee the high quality you require your products to have, high output and best service.

Modern control concepts and functionalities specifically adapted to your application will guarantee ease of operation and efficiency.

Owing to their ample screw torque and large screw speed range, our extruders can be used for many applications.

Quantity:
  • TPS-XJ-65, TPS-XJ-85, TPS-XJ-115, TPS-XJ-150, TPS-XJ-200, TPS-XJ-250
  • TOPS RECYCLING

Extruders made by tops industry group are from small to medium frame size, we offer compact and reliable machines. Special screw and barrel designs and configurations will guarantee the high quality you require your products to have, high output and best service.

Modern control concepts and functionalities specifically adapted to your application will guarantee ease of operation and efficiency.

Owing to their ample screw torque and large screw speed range, our extruders can be used for many applications.

Extruders made by TOPS INDUSTRY GROUP are used to produce:

  • rubber profiles such as window seals, vehicle or structural profiles

  • rubber hoses such as hoses for radiators, turbochargers, hydraulic or industrial hoses or automotive air hoses,

  • cable sheaths, wire sheathing or cord sheaths

  • belts and roll linings

  • tire or V-belt components

  • fire hoses and fenders

  • silicone rubber products for industrial or medical uses, among others

  • blanks or preforms

  • as well as for the straining of mixtures and for calendar feed


Hot feed extruder screw model available: 65mm,85mm,115mm,150mm,200mm,250mm,
Plain cold feed extruder screw model available: 65mm,90mm,120mm,150mm,200mm,

Strainer machine screw model available: 115mm,150mm,200mm,250mm

Pin-barrel cold feed extruder screw model available: 90mm,120mm,150mm,200mm,250mm



Features

1. The screw and screw barrel are all made of nitrogen hardening steel, so resistance to wear enough and better self-cleaning.

2. The screw with advanced structure is machined with N. C. Milling machine, so high precision.

3. Liners of the barrel with helical intake grooves had better heat conduction and feeding rolls are fixed at the feed zone.

4. Advanced reducer with a forced lubrication system, high working accuracy, less noise and wear resistance.

5. It is driven by a D. C. Motor, choose extrusion parameter according to different kinds of rubber stock and viscidity.

6. Each zone of the extrusion body can be automatically controlled with a hot water circulating unit.

7. More uses, the extrusion head or screw can be changed to extrude different kinds of rubber stock


Machine   Model

TPS-XJ-65

TPS-XJ-85

TPS-XJ-115

TPS-XJ-150

TPS-XJ-200

TPS-XJ-250

Screw Diameter (mm)

65

85

115

150

200

250

L/D Ratio

4

4.8

4.8

4.4

4.4

4.5

Screw Rotation Speed (R/Min)

20,27,35,47

28,40,52,72

20~60

27~81

3~64

3~56.3

Main Motor Power (Kw)

7.5

15

30

55

90

110

Production Capacity (Kg/Hr)

50~80

62~270

100~420

800

1500~2200

3600

Figure   Dimension

(mm)

L

1594

2065

2770

3411

4549

4950

W

604

760

655

814

1140

1150

H

1053

1154

1350

1470

1750

1483

Gross Weight (Kg)

1200

2600

4000

4800

5000

9000
