PET Pelletizing Machine

PET bottle/flakes Granulating/Pelletizing Machine
This line is specially designed to convert the waste PET scraps, waste PET bottles, waste PET sheet, waste PET cups, waste PET food wares, waste PET packages, waste PET fibers etc. into granules (pellets), which will be ready as a raw material for making new PET products.
Availability:
Quantity:
  • TPS-PETG300, TPS-PETG500, TPS-PETG800, TPS-PETG1000

  • Tops Recycling

PET bottle/flakes Granulating/Pelletizing Machine

This line is specially designed to convert the waste PET scraps, waste PET bottles, waste PET sheet, waste PET cups, waste PET food wares, waste PET packages, waste PET fibers etc. into granules (pellets), which will be ready as a raw material for making new PET products.



1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function, the new kneading block design effectively avoid the problems of overheating and energy consumption.


2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure, screw array, venting number and location, feeding method, electrical control methods etc. for rational allocation.



3. Various granulation systems such as

Water-cooling strand pelletizing,

Air-cooling die face hot cutting,

Water ring die face hot cutting,

Eccentric water mist hot cutting,

Water and underwater die face hot cutting and so on.



Main Machine

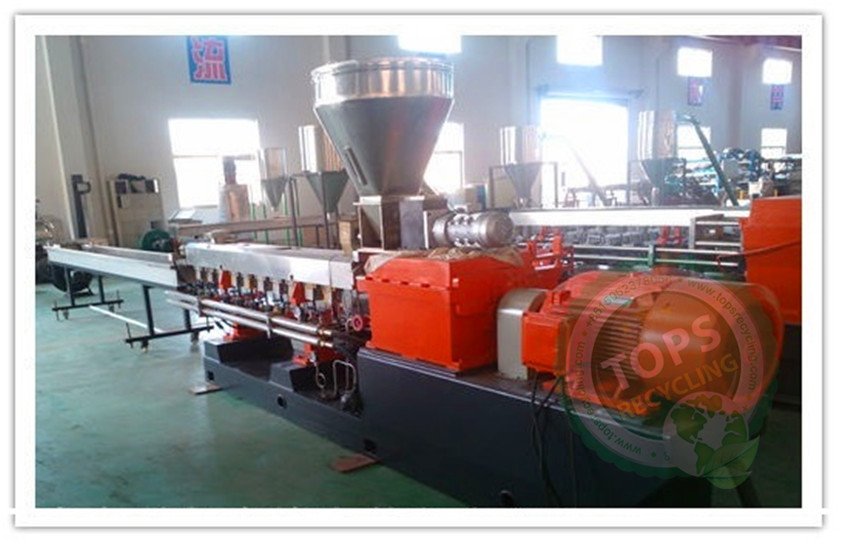

PET Parallel Twin Screw Extruder

Raw Material and end products

PET Flakes & PET Granulates

High quality gearbox and bearings

PET Recycling Machine

Screw and screw barrels

Plastic Pelletizing Machine

Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to

   suit different material. Screw component made of high speed & wear-resisting steel.

   The screw elements are designed accuratly and made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by

Package and shipment

Plastic Granulating Machine

Processing Center

PET Pelletizing Machine




We have various machine model to meet the demand of the custoers.

And it can be specially designed to granulate different raw material

Model

Screw Diameter

(mm)

screw L/D

screw speed

 (r/min)

Main motor power

(KW)

Screw Torque

(N.m)

Torque Level

T/N³

Capacity

(kg/h)

SHJ20

21.7

28~40

600

3/4

30

4.8

3-15

SHJ35

35.5

28~56

500

11 / 15

115

4.2

20-70

SHJ50

50.5

28~56

500

45 / 55 / 75

425

5.1

80-150

SHJ52B

51.4

28~56

400/500/600/800

45 / 55 / 75

425

5.1

120-280

SHJ65

62.4

28~56

500 / 600

55 / 75 / 90

675

4.8

150-300

SHJ65B

62.4

28~56

400/500/600/800

90/110

675

4.8

200-500

SHJ75

71

28~56

500 / 600

90 /110 /132

1005

4.6

300-550

SHJ75B

71

28~56

400/500/600/800

110 /132/180

1005

4.6

300-700

SHJ95

93

28~56

400 / 500

250 / 315

2815

5.9

600-1000

Plastic Pelletizing and Granulating Line

Plastic recycling extruder

PET Flakes

PET Flakes

PET Granules

PET Pellets

PET Granules

Production Sites

PET Recycling Production Line

Plastic Granules
