Tops Recycling provides a wide range of standard and bespoke plastic crushing and washing systems to meet the ever changing and demanding requirements of a modern recycling equipment. The systems are capable of processing a wide range of plastic materials with varying levels of contamination including extremely heavy contamination such as PET bottles, PP Bottles, Jerk Drums, milk bottles, plastic profiles etc. The whole production line is featured as easy to be operated, high efficient and low energy consumption.
PET Bottle Recycling Line Characteristic:
1. High automation level try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 500-3500kg/Hr
2. This Pet bottle recycling machine used friendly control system (PLC integrated & separated control on each machine) and Touch screen panel easy for operation monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect. Here is from our customer's feedback.
1) Moisture: Max. 1-2%
2) Bulk density: 0.3G/CM3
3) Total impurity: 320ppm
A-PVC content: 100ppm
B-metal content: 20ppm
C-PE/PP content: 200ppm
4) Particle size: 14-16mm
Our standard PET bottle washing line is a complete solution to convert dirty bales of PET bottles into clean PET flakes ready for usage in producing polyester staple fiber or further processing into plastic granules via pelletizing. We offer standard washing capacities from 500kg/h up to 3000kg/h and also customize wash lines with greater capacities.
Tops Industry’s PET recycling line is a fully automatic system where each section of recycling machinery is connected via either belt conveyor or screw conveyors. In addition, the entire washing line is controlled via PLC Touch screen or press button cabinet.
In general, the wholes system consists of the following units:

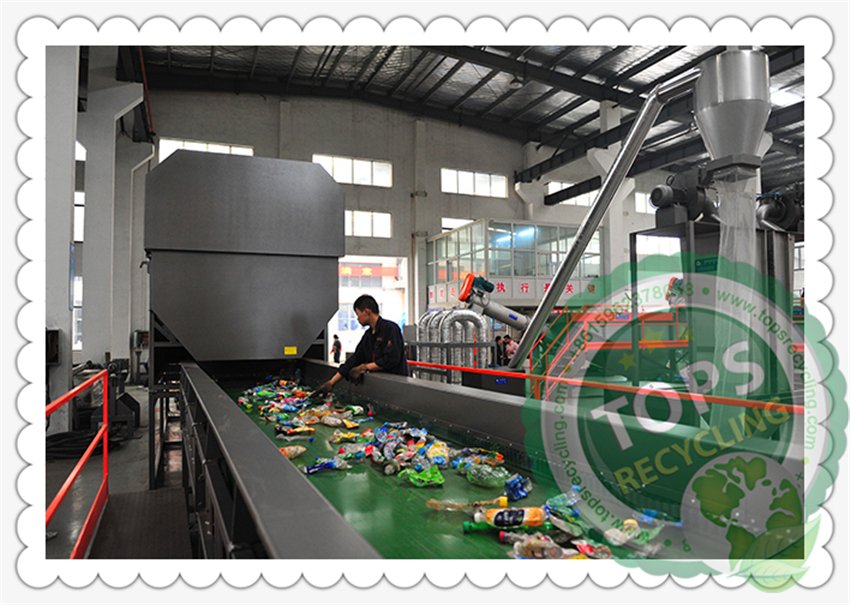

1. De-baler Machine – As PET bottles (with caps & labels) often come in bales, compacted bundles tied together with metal wires, the first stage is to get the material into a “free flowing” stream. The “de-baler” breaks apart the bales into separate plastic bottles which can easily drop onto the belt conveyor that are moved to the next step.
2. Trommel Separator – A large, slow rotating machine used to remove small pieces of contamination. At the core of the trommel separator is a large mesh screen tunnel that rotates between 6-10 rotations per minute. The holes on this tunnel are small enough so the PET bottles will not fall through, however, large enough so small particles of contamination.
3. Wet Granulator / Crusher – The bottles are cut into “flakes”, or small pieces, via our wet granulator. Simply put, a granulator uses an open rotor mounted with heavy-duty knives that rotate at high speeds. As the PET bottles enter the granulator’s cutting chamber, these rotating knives come into contact with stationary knives cutting the bottles into small pieces. A screen with small holes between 12-18mm in diameter is used to control the size of the flakes; That is, the PET plastic will continue to be cut within the chamber until it is small enough to fall through the holes on this screen. All the while, water is sprayed into the cutting chamber partially washing the bottles while acting as a lubricate to reduce friction of the knives and plastic.
4.Label Separator – The stream of plastic leaving the granulator is composed of PET flakes, paper and PP/PE/PVC film from the labels, and PP/PE rigid plastics from the bottle caps. This mixed stream is now ready to be sorted. The first step is the label separator where a column of pressured air blows away the lighter paper and plastic film into a separate collection tank.
5.Sink / Float Separation Tank – A large tank of water used to separate materials that sink from those that float. This is the final separation equipment in our PET bottle washing line that effectively removes the left over plastic films from labels and PP/PE bottles caps. As both the labels and bottle caps float in water, the sinking PET flakes can easily be removed to be further processed in the next piece of equipment.
6.Hot Washer for PET Flakes – Similar to a washing machine in nature, this stream of PET flakes is washed using boiling hot water which sterilizes and further gets rid of contaminants such as glues (from the labels being glued on), grease/oils, and difficult to remove left-overs (beverage/foods) from the equation.
7.Friction Washer – A secondary friction washer (cold water) is used to cool and further clean the PET flakes in a scrubbing manner.
8. Thermal Dryer + Cyclone Separator – The partially dried PET flakes can now be completely dried using the thermal dryers. Within the long tubes of the thermal dryers, hot air and the PET flakes are mixed together where the leftover moisture is dehydrated. The final cyclone separator mixes the hot, moist air with a flow of cold air cooling the PET flakes in preparation for storage.
9.Product Silo – A large storage tank for collecting the clean, dry PET flakes.
Friction Washing Machine
