Large Diameter Plastic Pipe Recycling Machine

This machine is specially designed to recycle large diameter pipes (PVC PIPE, PE PIPE, PPR PIPE).
It consists of hydraulic auto feeding system, single shaft shredder, screw conveyor, and crusher.
The waste pipe will be converted into rubber granules which can be used as raw material to make new plastic products with the application of this plastic pipe recycling system.
Availability:
Quantity:
  • TPS-LDPR1600

  • Tops Recycling



This machine is specially designed to recycle large diameter pipes (PVC PIPE, PE PIPE, PPR PIPE).

It consists of hydraulic auto feeding system, single shaft shredder, screw conveyor, and crusher.

The waste pipe will be converted into rubber granules which can be used as raw material to make new plastic products with the application of this plastic pipe recycling system.

 PE Pipe Recycling Machine.png

This machine is featured as high output, low energy consumption, low noise, sturdy and durable.

Pipe can be directly put into the feeding system without any pre-cut. The whole pipe is shredded which avoid the material waste by pre-cutting.

The cover of feeding chamber adopts hydraulic system. The cover will close slowly when the pipe is put into the feeding chamber.

The pipe will be push forward by hydraulic cylinder.

Hydraulic pushing system is associated with the current of the main motor. The hydraulic pusher will release automatically when the current of the main motor reaches into the set figure.

Over feeding would never happen because the hydraulic system is instructed under the set current of the main motor.

Square tools with holes on the shredder rotor. These tools can easily cut thick and hard materials. Optimal design of the rotor does not produce heat, thus avoiding the degradation of the material. Which significantly increased the cutting efficiency.

The movable knife seat and knife makes maintenance and repairing work get very easy. When the square tool is worn at one corner, you can easily turn it and use another corner. Each blade can be used for two times.

The driven force is supplied by high quality reducer which is mounted on the end of the rotation shaft and connected by pulley to a high quality motor.

When waste pipe is sent to the crushing chamber, the lid drop slowly, which features in low noise and safe working conditions.




PVC pipe recycling machine.png


Waste PE pipe Recycling Machine


Pipe shredder and pipe crusher

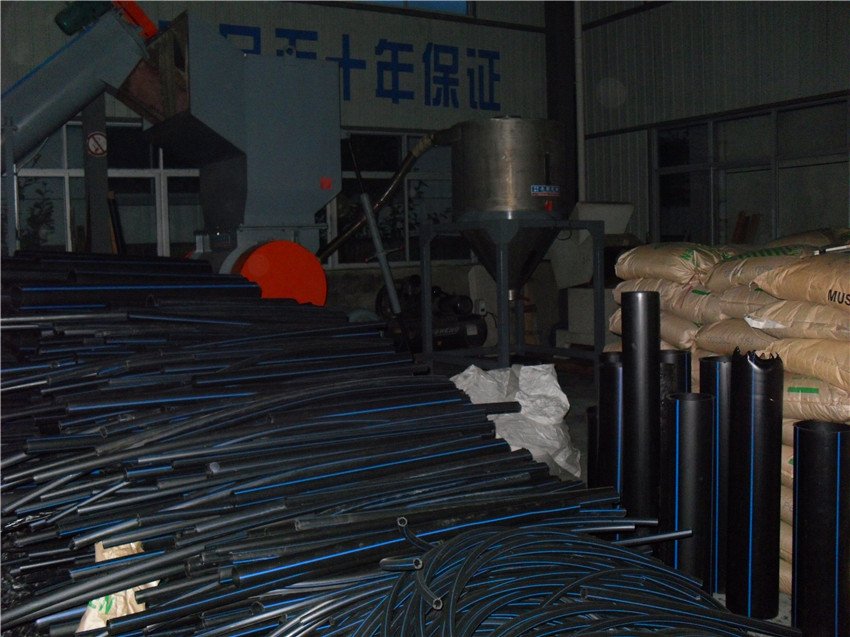

Waste Pipe Scrapped
