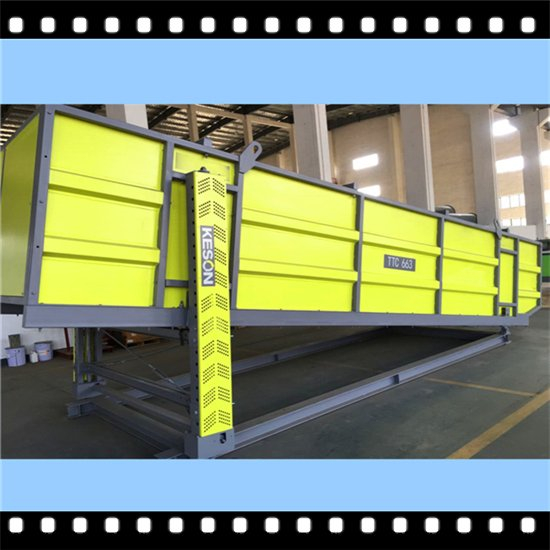

High Quality Ballistic Separator for Garbage Recycling Machine

Ballistic separator is an excellent sorting device for MSW, kitchen waste, waster paper recycling industry sieve according to the size, density and shape of different materials.

Ballistic separator through the eccentric shaft drive strip plates running. The materials to be screened and shake into the heavy, 3D rolling material (such as wood, plastic bottles, cans) and 2D material light, flat part (film, paper, cardboard) and undersize part (sand, food, residual) to follow-up treatment process

Quantity:
  • TPS-JTC643,
  • Shilong

1. Video

Ballistic Separator


MSW Slag Separation Treatment

2. What Can We Do?

Over the years, we have provided equipment and overall solutions for different industries. helped our customers stable operation, environmental protection and sustainable development.

For existing projects, we help optimize the process to more environmentally friendly, improve economic efficiency. For new projects, we will serve as your first partner, through the engineering design, plant design, equipment supply, testing and operation. Sharing the experience accumulated over the years in technology and engineering field, Keep the leading position for you in environmental protection and sustainable development

Garbage Recycling Machine

3. Solution ---- What Can we do

Garbage Separating Machine

1. Introduction

Ballistic separator is an excellent sorting device for MSW, kitchen waste, waster paper recycling industry sieve according to the size, density and shape of different materials.



Ballistic separator through the eccentric shaft drive strip plates running. The materials to be screened and shake into the heavy, 3D rolling material (such as wood, plastic bottles, cans) and 2D material light, flat part (film, paper, cardboard) and undersize part (sand, food, residual) to follow-up treatment process

Ballistic Separator.jpg



—— Sorting machine of separating 3D materials, 2D materials and fine materials.



3D materials:Refers to heavier, rolling materials such as plastic bottles, stones, wood, boxes, cans, etc.

2D materials:Refers to the lighter materials, such as plastic film, packaging bags, paper, cardboard boxes, fiber products, etc

Fine materials:Refers to under the screen materials. such as sand and organic materials etc. 。



2. Work Principle

The transmission mechanism is composed of driving shaft, driven shaft, eccentric wheel. Ballistic separator through the eccentric shaft drive the transmission mechanism running.

The strip plates produce reciprocating circular motion similar to the spring.

The material can be sort three kinds. The large grain size, heavy and rolling 3D materials. Small particle size, low elasticity, fines materials. Light flat large size, 2D materials.

Though the connection between the different grad ability and the differing behavior, the material for separation in the machine can be affected by the angle of the strip plates. So built a lifting device for adjusting the angle of strip plates.

 Municipal Solid Waste Separation Machine.jpg

Note:

In order to avoid the damage of the sorting plate should control in-feed stability, to avoid affecting the separation effect. Don't used for separating large masonry construction waste, large solid waste, this kind of material in the pre-sorting out.

Don‘t use it for separating strong acid alkaline materials

3. Application

Stale MSW, biodegradable waste separation.

Waste paper recycling.

Separation of waste derived fuel products.

The kitchen waste sorting.

MSW, industrial waste separation.

 Ballistic Separator Application






1. Machine Model

Type

JTC643

JTC653

TTC653

TTC663

TTC863

DTC643

DTC653

DTC853

HTC853

Strip width(mm)

258

358

Working width(mm)

1500

2100

2700

2100

2700

Strip Length(mm)

4300

5300

5300

6300

6300

2×4300

2×5300

2×5300

3×5300

Power(kW)

7,5

9

11

15

18

22

33

Strip Area(m²)

6

8

11

12

17

17

21

28

42

Qty of strip

6

8

12

16

24

Max. capacity(m3/h)

10~25

15~30

25~50

30~60

50~75

According to material and   process

Angle adjustment

range:0~15°,     option----Auto/manual

Centralized lubrication

option----Auto/manual

Stick

According to material and   process

Covers

option----Plastic/steel



2. Conveyor Equipment

Conveying System for Garbage Recycling

3. Control System

 Control System for MSW Separating

1. Solutions

1.1 Sorting Plant of Stale MSW

Sorting plant of stale MSW .jpg

1.2 Reduction of MSW Transfer Station

Reduction of MSW transfer station.jpg

1.3 Sorting Plant of Waste Paper Residue

Sorting plan of wastepaper residue.jpg

2. Cases

2.1 Auto Dismantling Crushing Treatment Plant (8Tons/Hr.)

8TPHr Auto Dismantling Crushing Treatment Plant.jpg

2.2 Sorting Line of Wastepaper Residue (20 Tons/Hr.)

20tph Sorting line of wastepaper residue.jpg

2.3 MSW Slag Separation System (35 Tons/Hr.)

35tph MSW Slag separation system.jpg
