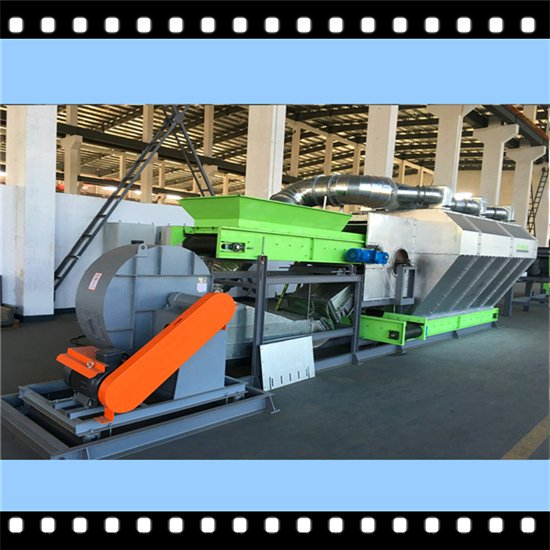

High Quality AIR SEPARATOR for Garbage Recycling Machine

Air separation technology is a kind of traditional separation methods, have been widely used in all kinds of solid waste treatment and resource recovery.
Air separator is almost one of the necessary equipment. The main principle is to use the principle of aerodynamics, in the common role of controlled positive pressure air and negative pressure air, separating the materials in light & small matter from the heavy materials, and take away into the settling chamber in the horizontal direction. Light materials output through conveyor. The heavy materials are deposited on the conveyor due to the upward flow and cannot support its gravity.

Quantity:
  • TPS-VDF050, TPS-VDF065, TPS-VDF080, TPS-VDF110, TPS-VDF180
  • Shilong

1. Video

Air Separator for Garbage Recycling


MSW Slag Separation Treatment

2. What Can We Do?

Over the years, we have provided equipment and overall solutions for different industries. helped our customers stable operation, environmental protection and sustainable development.

For existing projects, we help optimize the process to more environmentally friendly, improve economic efficiency. For new projects, we will serve as your first partner, through the engineering design, plant design, equipment supply, testing and operation. Sharing the experience accumulated over the years in technology and engineering field, Keep the leading position for you in environmental protection and sustainable development

Garbage Recycling Machine

3. Solution ---- What Can we do

Garbage Separating Machine

1. Introduction

Air separation technology is a kind of traditional separation methods, have been widely used in all kinds of solid waste treatment and resource recovery.

Air separator is almost one of the necessary equipment. The main principle is to use the principle of aerodynamics, in the common role of controlled positive pressure air and negative pressure air, separating the materials in light & small matter from the heavy materials, and take away into the settling chamber in the horizontal direction. Light materials output through conveyor. The heavy materials are deposited on the conveyor due to the upward flow and cannot support its gravity.

Air Separator for Garbage Recycling

——  Sorting machine of separating heavy materials, and light materials.



Heavy materials- such as copper, iron, stone, glass, ceramics, wood, etc.

Light materials-such as film, waste paper and other light metals.



2. Characteristics

Ø  Negative pressure separation, no dust leakage.

Ø  Stepless speed control system, to meet the different properties of materials, including high humidity materials.

Ø  Low maintenance costs by modular design.

Ø  No need to additional wind system and filtration system (except for special requirements)

Ø  Double drum separation chamber, can be divided into light, medium and heavy three kinds of materials.

Ø  Few wearing parts, very low downtime.

Ø  Electronic and mechanical modular design, installation site plug and play.

Work Theory.jpg

3. Application

    MSW.

    Stale MSW.

    Auto crushing materials

    MSW Slag.

    C & D waste

    Commercial and industrial waste

    Glass recycling.

    RDF/SRF

Air Separator for Garbage Recycling System


1. Machine Model

Name

Air Separator

Model

VDF050

VDF 065

VDF 080

VDF 100

VDF 120

VDF 140

VDF 160

VDF 180

Working Width
  (mm)

500

650

800

1000

1200

1400

1600

1800

Capacity
  (m3/h)

14~17

18~22

23~27

28~33

37~42

43~48

50~55

60~65

Particle Size
  (mm)

50~300

2. Conveyor Equipment

Conveying System for Garbage Recycling

3. Control System

 Control System for MSW Separating

1. Solutions

1.1 Sorting Plant of Stale MSW

Sorting plant of stale MSW .jpg

1.2 Reduction of MSW Transfer Station

Reduction of MSW transfer station.jpg

1.3 Sorting Plant of Waste Paper Residue

Sorting plan of wastepaper residue.jpg

2. Cases

2.1 Auto Dismantling Crushing Treatment Plant (8Tons/Hr.)

8TPHr Auto Dismantling Crushing Treatment Plant.jpg

2.2 Sorting Line of Wastepaper Residue (20 Tons/Hr.)

20tph Sorting line of wastepaper residue.jpg

2.3 MSW Slag Separation System (35 Tons/Hr.)

35tph MSW Slag separation system.jpg
